Dynamic Subscriptions Edit on GitHub


In more advanced usages of the Jasper service bus, you may want your application to be able to subscribe to messages produced by a separate application without having to first configure the other application. The subscriptions feature is the mechanism to make this registration without having to directly couple your Jasper applications to each other.

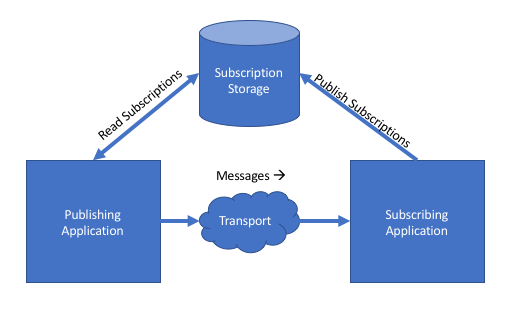

The subscriptions support consists of a few pieces and concepts:


  1. Your application should declare the published messages it wants to subscribe to
  2. Optionally, you may declare the messages that your application publishes strictly for the sake of diagnostics
  3. A subscription storage mechanism that persists all the message subscriptions
  4. Jasper's internal message routing that uses the known subscriptions to decide where published messages should be sent
  5. Optional command line tooling to publish, list, or validate the known subscriptions

Subscription Storage

The default subscription storage is to look in the application configuration in the subscriptions key. The JSON data should follow this format:

    "subscriptions": [
        "destination": "tcp://localhost:2001",
        "messageType": "Message1",
        "serviceName": null,
        "accept": [
        "destination": "tcp://localhost:2002",
        "messageType": "Message2",
        "serviceName": null,
        "accept": [
        "destination": "tcp://localhost:2003",
        "messageType": "Message3",
        "serviceName": null,
        "accept": [

That functionality depends on you editing and deploying the subscription information for other applications in your own application, so you might want to replace that with some sort of durable, shared storage mechanism if you're going to use subscriptions. To use a different subscription storage, you need an implementation of the ISubscriptionsRepository interface that you can plug into the application services like so:

public class SubscriptionStorageApp : JasperRegistry
    public SubscriptionStorageApp()
        // Plug in subscription storage backed by Marten
        Services.AddSingleton<ISubscriptionsRepository, MartenSubscriptionRepository>();

You can see a sample implementation for Marten here.

As of today, the Jasper community has working subscription storage based on Consul and Marten on top of a Postgresql database.

Configurating Subscriptions

Subscriptions are configured in the JasperRegistry class that establishes your application.

As an example, let's say you have an application that wants to subscribe to messages:

public class LocalApp : JasperRegistry
    public LocalApp()
        // Explicitly set the logical descriptive
        // name of this application. The default is
        // derived from the name of the class
        ServiceName = "MyApplication";

        // Incoming messages

        // *Optionally* make the subscriptions to the location of the load
        // balancer in front of your logical application nodes

        // Declare subscriptions to specific message types

        // Or just quickly say, "send me everything that
        // I understand how to handle"

A couple things to note from the sample above:

  • The Subscribe.At(Uri) call isn't technically mandatory, but if it's left out, the subscription will be made to the local machine where the Jasper node is running. If you're running multiple nodes behind a hardware load balancer or using a clustered queue like RabbitMQ, you'll want the subscription made to the load balancer.
  • When Jasper makes the subscription, it also gathers up all the message versions and representations that your application knows how to read. As long as the publishing application can write to one of those representations and supports the transport in your call to Subscribe.At(Uri), you should be good to go. See the section below on validating subscriptions.
  • Your Jasper application does not automatically publish its subscriptions on application startup. This is a change from its FubuTransportation antecedent. See the section below about publishing subscriptions.

Publishing Subscriptions

Assuming that you are using the Jasper.CommandLine package to run your Jasper application, you'll have an extra command to publish all the subscriptions to the registered subscription storage. Assuming that your application compiles to "MyApp.exe," the command line would be:

|> MyApp subscriptions publish

If you just want to export the subscriptions to a JSON file where you can view the data that would be published to the subscription storage, use:

|> MyApp subscriptions export --directory ~/subscriptions

where the --directory / -d flag just denotes where you want the file written. assuming that the service name is MyApp, the file exported will be MyApp.capabilities.json.

To just list the subscriptions in the console, it's:

|> MyApp subscriptions list

Declaring Published Messages

Strictly for informational or diagnostic purposes, you can explicitly declare which message types your application publishes like this:

public class PublisherApp : JasperRegistry
    public PublisherApp()
        // Opt into the Consul backed subscriptions
        // using the default Consul configuration


        // 100% Optional for diagnostics

        // Assume that all concrete types in your application
        // in your application assembly that implement a marker
        // interface are published by the application
        // NOTE: IPublished is just an example and does not exist in Jasper
        Publish.MessagesMatching(x => x.CanBeCastTo<IPublished>());

        // This would be the Uri to the load balancer

Or if you're okay with this approach, you can use the [Publish] attribute in Jasper like so:

public class PublishedMessage1


Do note that you can send message types even if that message type is not declared as being published.

Validating Subscriptions

The command line support also has the ability to scan through exported "capabilities" files from the MyApp subscriptions export command and report and validate against the entire known ecosystem. Assuming that every related application exports their capabilities (requested subscriptions and known published messages) to a common directory or source control repository, you can use this command:

|> MyApp subscriptions validate --file subscription-report.json

In the sample above, we're writing the whole messaging graph of matched routes and potential problems to a file named subscription-report.json.

Do note that this command will fail at the command line if it detects any problems unless you also use the --ignore-failures flag. Definitely use this flag if you are only using this command for informational purposes or you aren't being strict about marking published messages.

This command compares publisher and subscription capabilities based on supported transports and message representations. This report can detect:

  • Valid message routes for each permutation of message type, subscriber, and publisher
  • Messages referenced in subscriptions that have no known publisher
  • Messages that are marked as published but not subscribed to by any known application
  • Mismatched subscriptions based on publisher and subscriber capabilities. This will catch any issue with having no compatible message representations or matching transports

See Reading, Writing, and Versioning Messages for more information.
